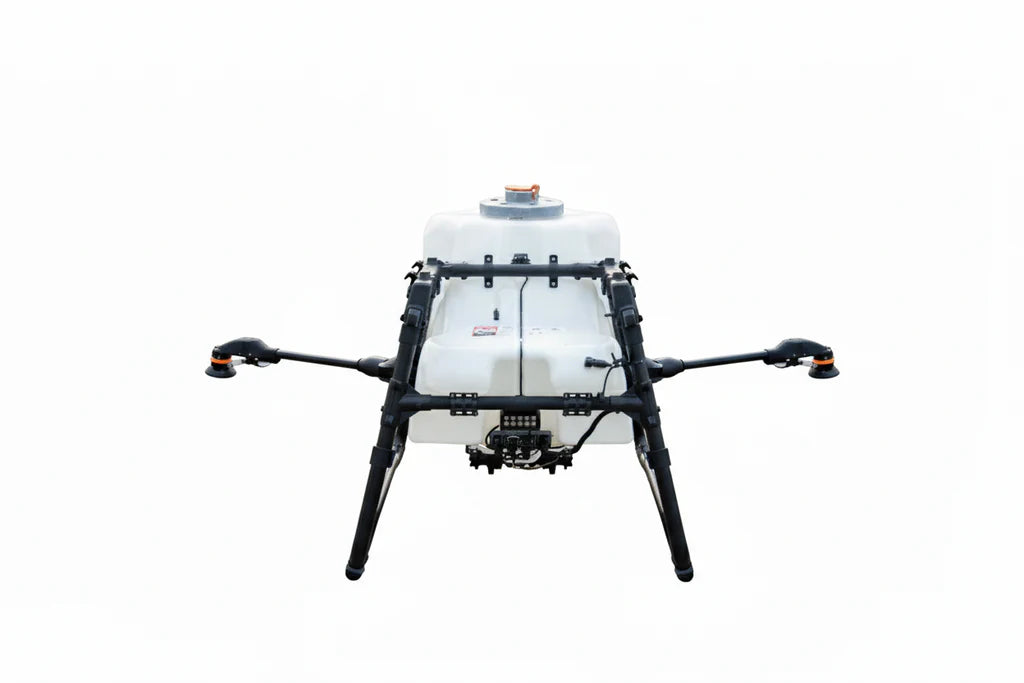

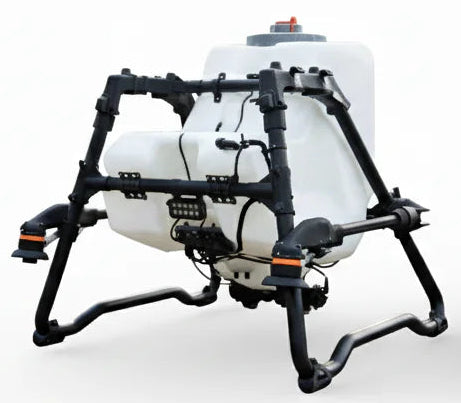

Complete 100 L spraying system for the DJI Agras T100.

The LS100 spraying system uses a 100 L tank, two magnetic-drive impeller pumps, and dual atomizing centrifugal sprinklers in the standard configuration. It is built for high-volume agricultural spraying with adjustable droplet size and high flow capability.

Key specs

• 100 L spray tank
• 100 kg operating payload under DJI-rated conditions
• Standard configuration: 2 sprinklers
• Maximum standard flow rate: 30 L/min
• Optional 4-sprinkler mist setup: up to 40 L/min
• Adjustable droplet size: 50–500 μm
• DJI-rated effective spray width: 5–13 m depending on operating conditions
• 2 magnetic-drive impeller pumps

If you are replacing a damaged T100 spray system or building a different T100 configuration, contact TJ Aerosense and we can verify exactly what you need before ordering.
